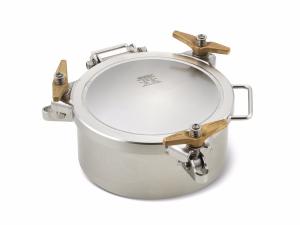

Тип "Б" смотровая люк по EN 14025 ADR
Our manlids and inspection covers are all designed, calculated and approved by RW TÜV according to ADR (EN14025).
Our welding procedures are also certified by RW TÜV according to ENISO 15614-1-2004.
The type B inspection covers are supplied full of:
- neckring (height = 125mm, thickness = 8mm)
- cover
- swingbolts in stainless steel + nuts in brass
SEZIONE GUARNIZIONE 10x15/15x15 | SEAL SECTION 10x15/15x15
| Tiranti Points |
Diametro DN Diameter DN |
Altezza virola Neckring height |
Pressione MAX MAX Pressure |
Materiale (Acciaio INOX) Material (Stainless Steel) |
Codice Code |
|---|---|---|---|---|---|
| 3 | ø 300 mm (ø 12,00") |
125 mm (4,92") |
4,0 bar | SS 304 | A355 |
| SS 316 | A356 | ||||
| ø 300 mm (ø 12,00") |
250 mm (9,84") |
4,0 bar | SS 304 | A35525 | |
| SS 316 | A35625 | ||||
| 4 | ø 300 mm (ø 12,00") |
125 mm (4,92") |
6,0 bar | SS 304 | A357 |
| SS 316 | A358 |
